Height Difference Adjustment

Verify that the height difference between the hood and the body is within the specification.

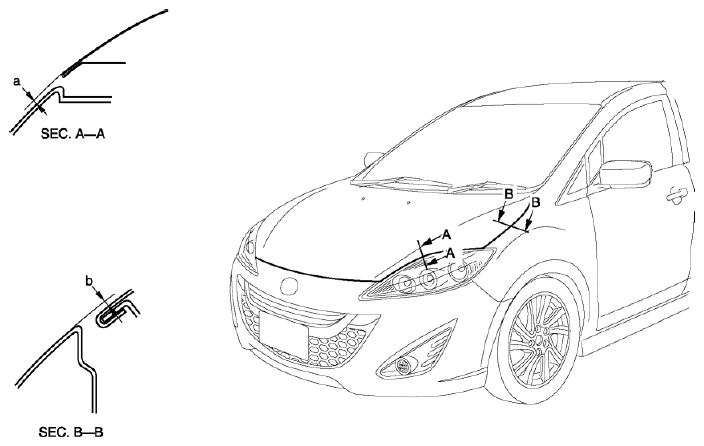

Fig 1: Identifying Height Difference Between Hood And Body

Standard clearance
- a: -2.8-0.8 mm {-0.11-0.03 in}
- b: -1.2-1.2 mm {-0.047-0.047 in}
Turn the stop rubber to adjust the height of the hood.

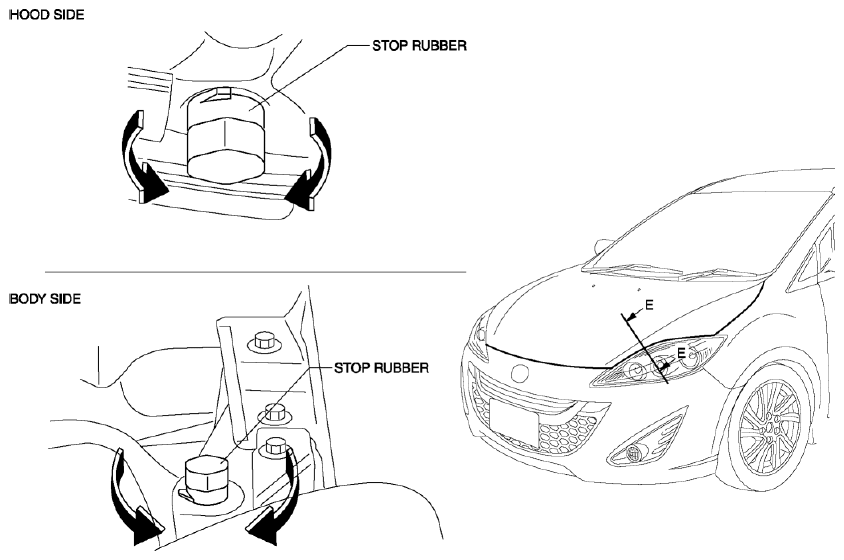

Fig 2: Turning Stop Rubber
Verify that the height difference between the hood and the body is within the specification.
- SEC.E-E
  - -1.0-2.6 mm {-0.03-0.10 in}
