Cowl Panel Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Remove the bolt.

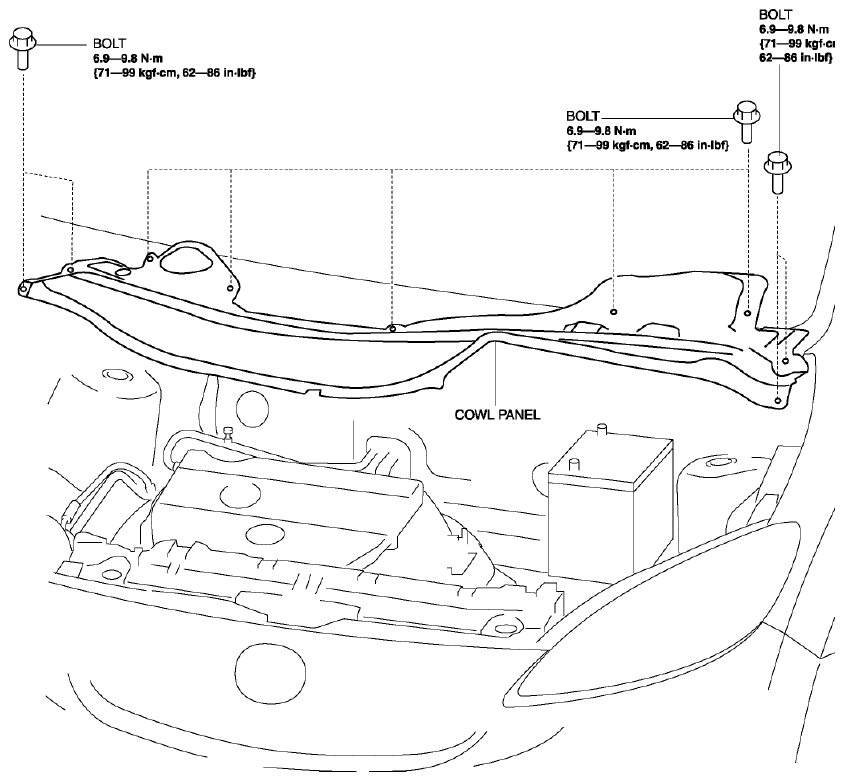

    Fig 1: Cowl Panel And Bolts With Torque Specifications
    G08152752
  4. Remove the cowl panel in the direction of the arrow shown in the figure.

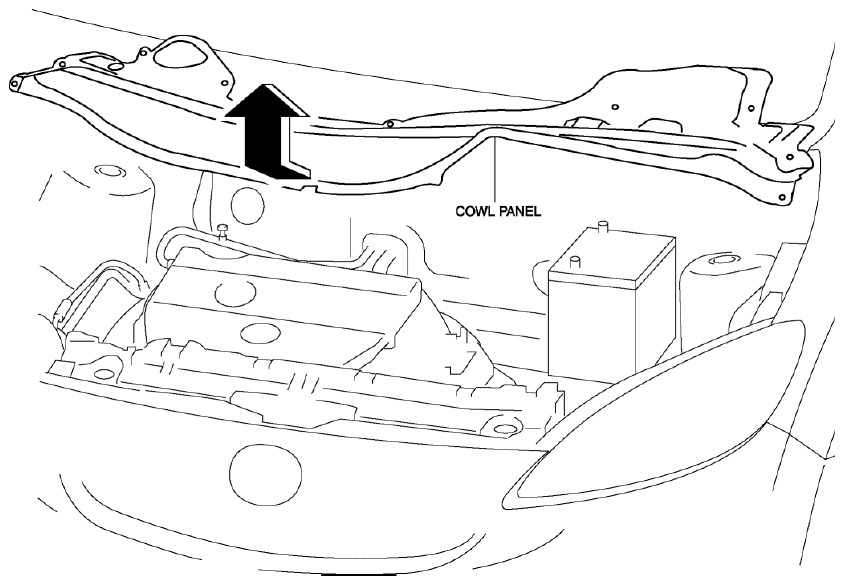

    Fig 2: Cowl Panel
    G08152753
  5. Remove the cowl panel.
  6. Install in the reverse order of removal.
