Quick Diagnosis Chart

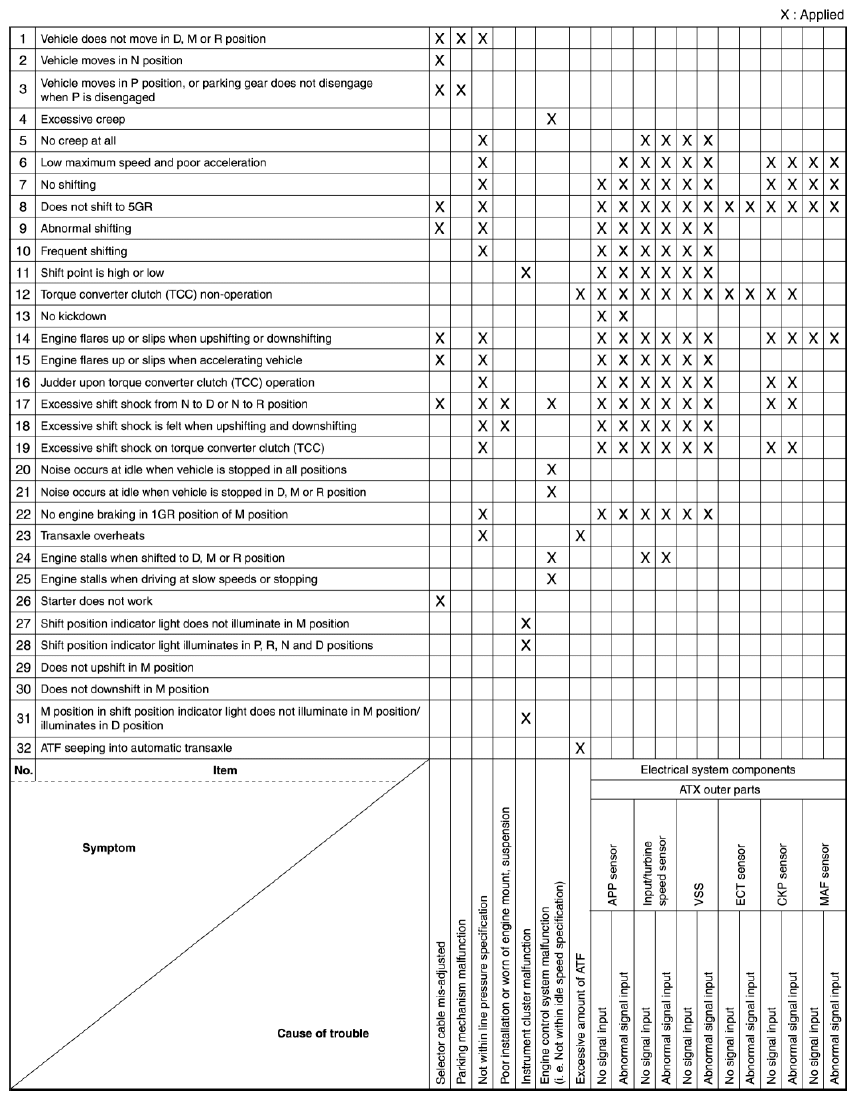

Fig 1: FS5A-EL - Quick Diagnosis Chart (1 Of 4)
G08151988

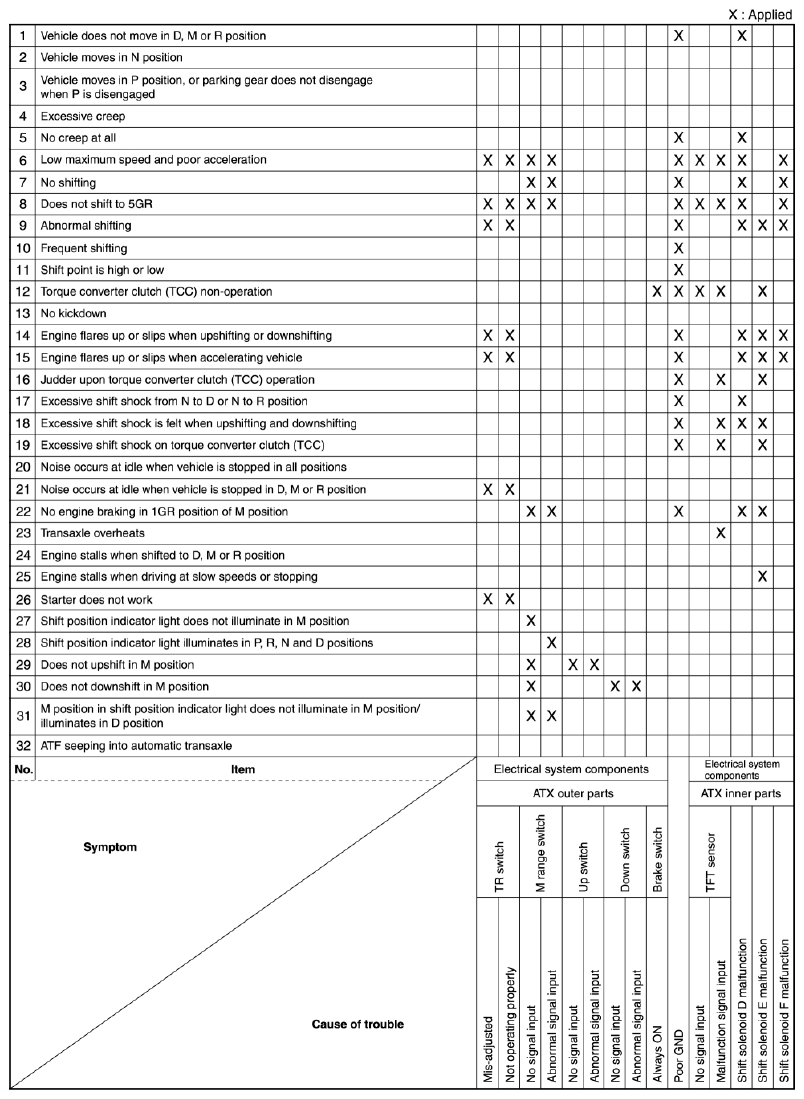

Fig 2: FS5A-EL - Quick Diagnosis Chart (2 Of 4)
G08151989

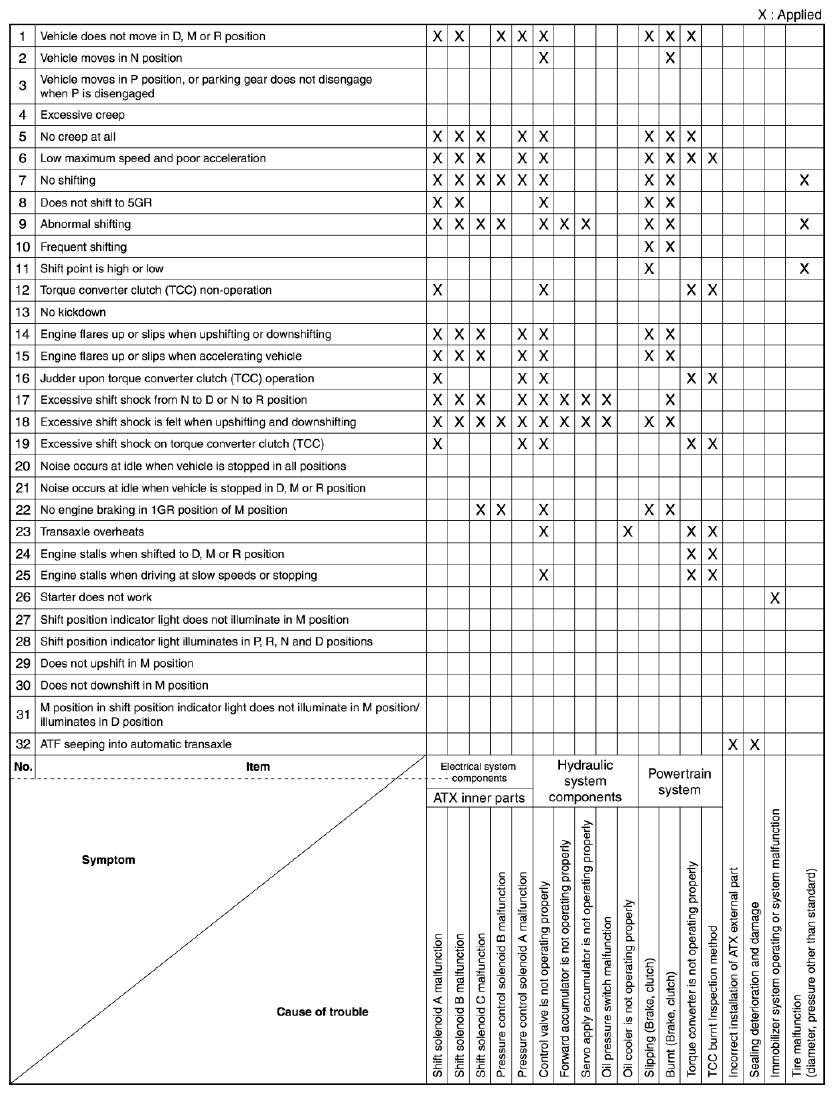

Fig 3: FS5A-EL - Quick Diagnosis Chart (3 Of 4)
G08151990

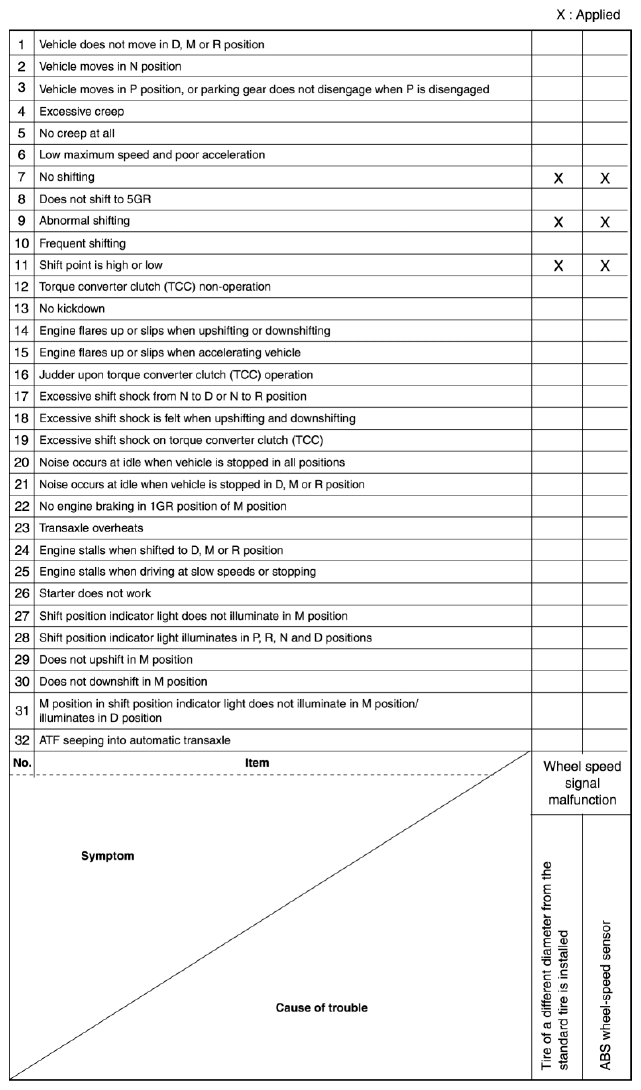

Fig 4: FS5A-EL - Quick Diagnosis Chart (4 Of 4)
G08151991
