On-Board Diagnostic System Wiring Diagram -- Automatic Transaxle
On-Board Diagnostic System Wiring Diagram -- Automatic Transaxle

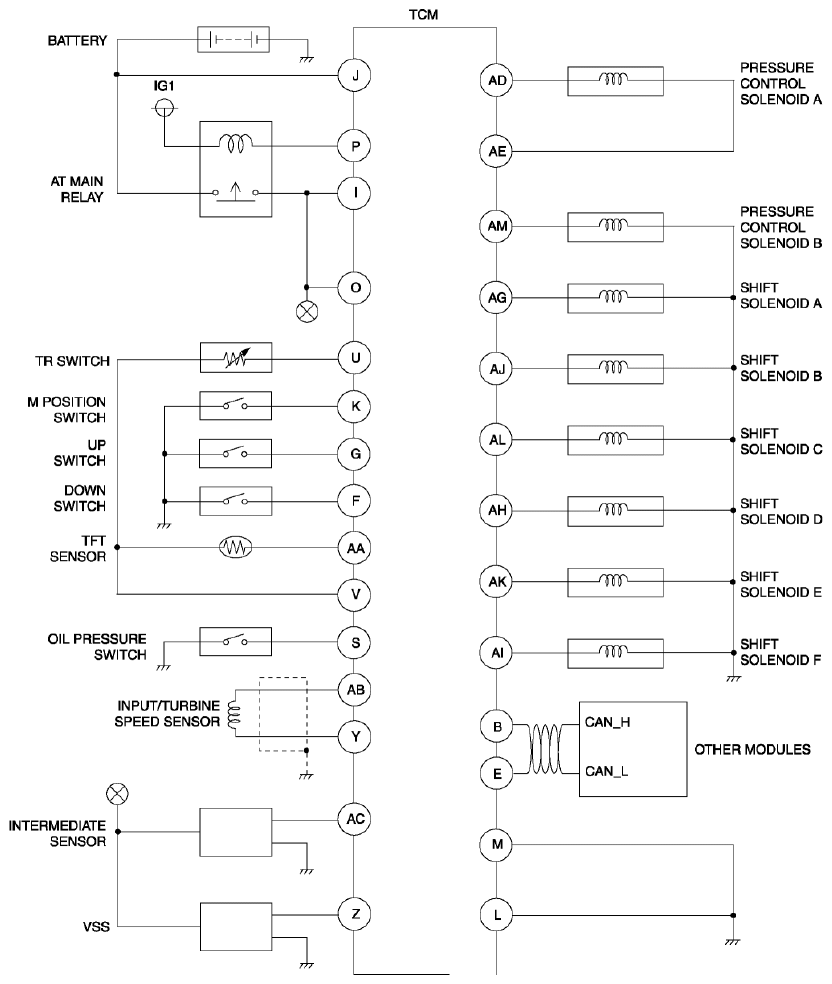

Fig 1: On-Board Diagnostic System Wiring Diagram (FS5A-EL)
