Manual Shaft Nut Installation Note

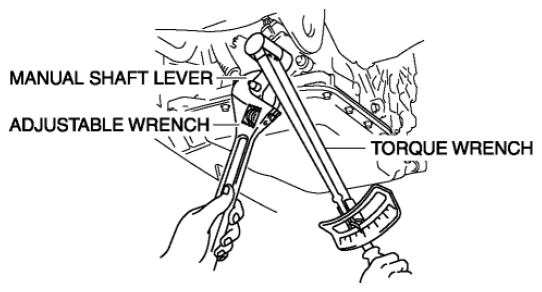

- Fix the manual shaft lever using an adjustable wrench and tighten the manual shaft nut.
CAUTION:
- Do not tighten the manual shaft nut using an impact wrench. When tightening the manual shaft nut, fix the manual shaft lever so that torque is not applied to the manual shaft.
- If torque is applied to the manual shaft, it could cause bending or breakage of the spring pin on the manual shaft, damage to the TR switch, and a shift malfunction.
Tightening torque
- 32-46 N.m {3.3-4.6 kgf.m, 24-33 ft.lbf}
