Inspection Using an Oscilloscope (Reference): VSS

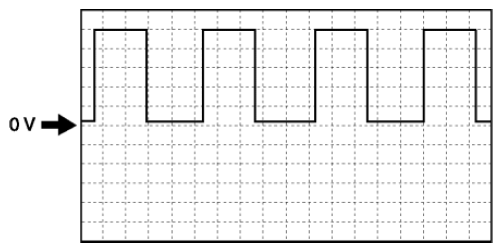

Fig 1: VSS Oscilloscope Waveform

Terminal:
Z (+)-GND (-)
Oscilloscope setting:
1 V/DIV (Y), 2 ms/DIV (X), DC range
Measurement condition:
When all of the following conditions are met:
- Vehicle speed: 30 km/h {19 mph}
- 3GR
