Inspection Using an Oscilloscope (Reference)
>>
Shift solenoid A
Shift solenoid A

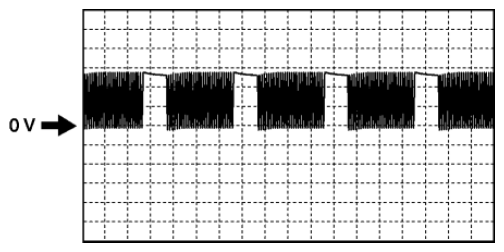

Fig 1: Shift Solenoid A Oscilloscope Waveform
Terminal:
AG (+)-GND (-)
Oscilloscope setting:
5 V/DIV (Y), 5 ms/DIV (X), DC range
Measurement condition:
D position driving in 4GR
