Pressure control solenoid A (+)

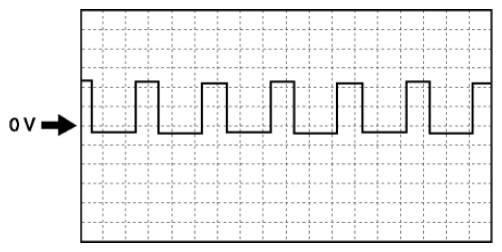

Fig 1: Pressure Control Solenoid A (+) Oscilloscope Waveform

Terminal:
AD (+)-GND (-)
Oscilloscope setting:
5 V/DIV (Y), 1 ms/DIV (X), DC range
Measurement condition:
When all of the following conditions are met:
- Ignition switched ON (engine off)
- P position
- Accelerator pedal fully depressed
