Input/turbine speed sensor

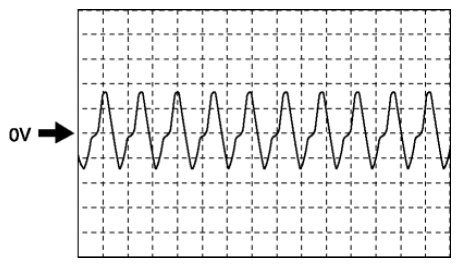

Fig 1: Input/Turbine Speed Sensor Oscilloscope Waveform

G08152121

Terminal:
AB (+)-Y (-)
Oscilloscope setting:
1 V/DIV (Y), 2 ms/DIV (X), DC range
Measurement condition:
Idling in P position after warming up
