On-vehicle inspection

  1. Disconnect the coupler component connector.
    1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
    2. Disconnect the negative battery cable.
    3. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
    4. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
    5. Disconnect the coupler component connector.

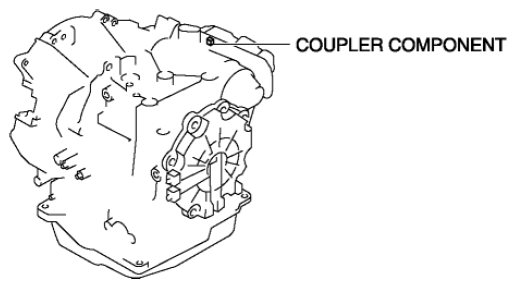

      Fig 1: Identifying Coupler Component
      G08152112
  2. Measure the solenoid valve resistance.
    Fig 2: Identifying Coupler Component Connector Terminals
    G08152113
    • If there is any malfunction, inspect the coupler component continuity.
    • If there is any malfunction in the coupler component, inspect the solenoid valves individually. (See PART INSPECTION .)
    SOLENOID VALVE RESISTANCE

    Solenoid Valve Terminal Resistance (ohm)
    Pressure control solenoid B A-GND 1.0-4.2
    Shift solenoid F B-GND 8.4-21.8
