On-Vehicle Inspection

  1. Disconnect the input/turbine speed sensor connector.
    1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
    2. Disconnect the negative battery cable.
    3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
    4. Disconnect the input/turbine speed sensor connector.

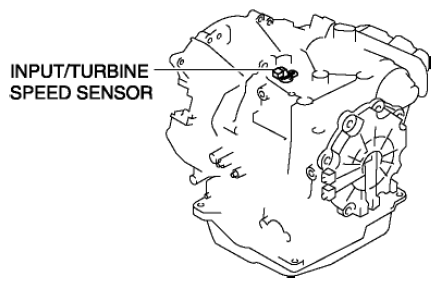

      Fig 1: Identifying Input/Turbine Speed Sensor
      G08152089
  2. Measure resistance between input/turbine speed sensor terminals A and B.
    Fig 2: Identifying Input/Turbine Speed Sensor Connector Terminals
    G08152090
