Drive Plate Installation Bolt Installation Note

Set the SST to the engine.

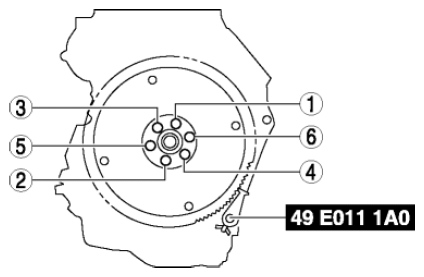

Fig 1: Identifying Drive Plate Installation Bolts Tightening Sequence
Tighten new drive plate installation bolts uniformly in two or three passes in the order shown in the figure.
Tightening torque
- 108-116 N.m {11.1-11.8 kgf.m, 80-85 ft.lbf}
