No.1 Engine Mount, No.4 Engine Mount Installation Note

  1. Install the No.4 engine mount bracket to the transaxle case.
    Fig 1: No.4 Engine Mount Bracket And Nut With Torque Specification
    G08152148
  2. Install the No.1 engine mount bracket to the converter housing.
    Fig 2: No.1 Engine Mount Bracket Bolts With Torque Specification
    G08152149
  3. Install the No.1 engine mount rubber and temporarily tighten the bolts shown in the figure.
    Fig 3: Identifying No.1 Engine Mount Rubber Bolts
    G08152150

    Bolt length

    • Front crossmember side: approx. 62 mm {2.4 in}
    • No.1 engine mount bracket side: approx. 65 mm {2.6 in}
  4. Insert the No.4 engine mount rubber into the stud bolt of the body and tighten the bolt shown in the figure.
    Fig 4: No.4 Engine Mount Rubber Stud Bolt With Torque Specifications
    G08152151
  5. Completely tighten the No.1 engine mount rubber bolts in the order shown in the figure.

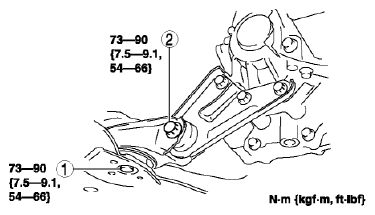

    Fig 5: No.1 Engine Mount Rubber Bolts Tightening Sequence With Torque Specifications
    G08152152
  6. Insert the battery tray bracket into the stud bolt of the body from the upper side of the No.4 engine mount rubber, and tighten the nuts.

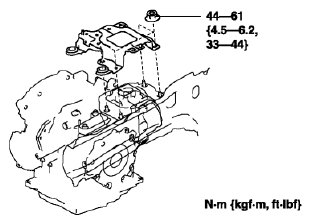

    Fig 6: No.4 Engine Mount Rubber And Nuts With Torque Specification
    G08152153
  7. Remove the SST (49 C017 5A0)  .
