Tire Removal Note

Set the bead breaker at the position laterally opposed to the valve.

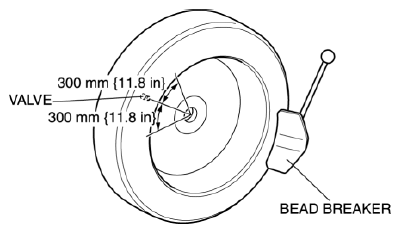

Fig 1: Identifying Bead Breaker And Valve Angle
Break the bead loose.
CAUTION:
- Do not break the bead loose within the range of 300 mm {11.8 in} on each side of the valve. Otherwise, the wheel unit could be damaged.
Break the bead loose on the other side of the wheel.

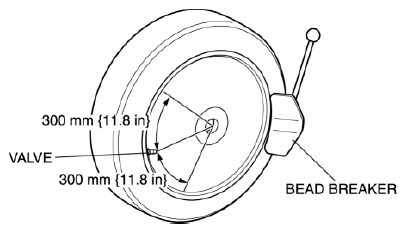

Fig 2: Identifying Bead Breaker And Valve Angle
CAUTION:
- Set the bead breaker at the position laterally opposed to the valve.
- Do not break the bead loose within the range of 300 mm {11.8 in} on each side of the valve. Otherwise, the wheel unit could be damaged.
Insert the tire lever at the point 40 mm {1.6 in} from the wheel unit in the direction that the tire changer turntable rotates.

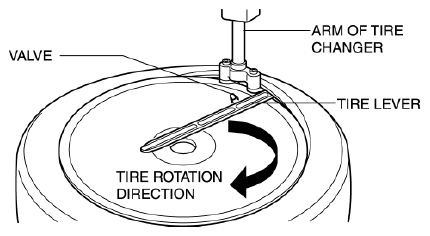

Fig 3: Inserting Tire Lever At Point From Wheel Unit In Direction Tire Changer Turntable
Remove the bead from the wheel.
NOTE:
- Using the tire lever as a support will aid in preventing the tire changer arm from deviating from the point at which the bead is first broken.

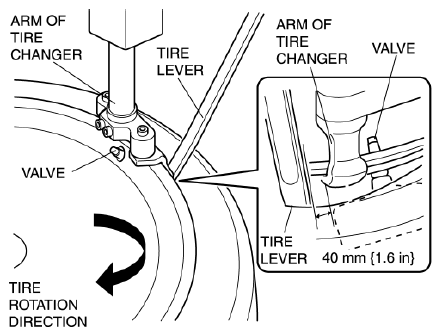

Fig 4: Inserting Tire Lever At Point Of Wheel Unit In Direction Tire Changer Turntable Rotation
For the other side, insert the tire lever at the point of 40 mm {1.6 in} from the wheel unit in the direction that the tire changer turntable rotates, and remove the bead from the wheel.
