Tire Installation Note

Set the tire at the point A (200 mm {7.87 in} away from the valve hole), and install the tire.

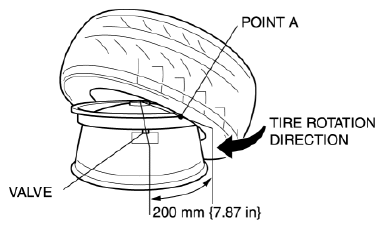

Fig 1: Installing Tire At Point A
Set the tire at the point A (200 mm {7.87 in} away from the valve hole).

Fig 2: Setting Tire At Point A
NOTE:
- Using the tire lever as a support will aid in preventing the tire from deviating from the point A.
Install the tire.
