| POSSIBLE CAUSE |
- Keyless receiver connector or terminals malfunction
- BCM connector or terminals malfunction
- Instrument cluster connector or terminals malfunction

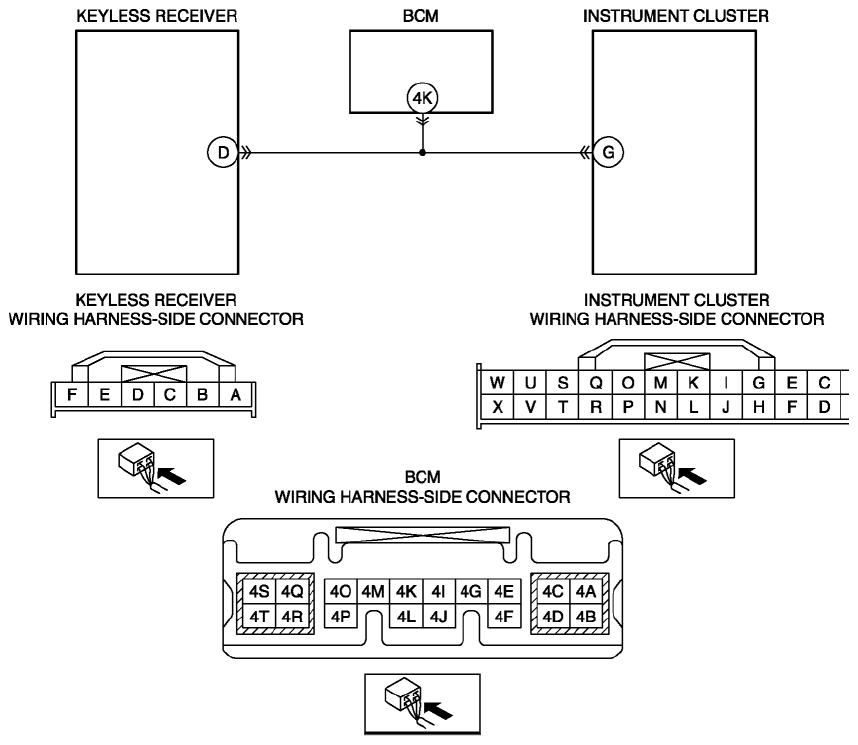

- Short to ground in wiring harness between the following terminals:
- Keyless receiver terminal D-BCM terminal 4K-Instrument cluster terminal G
- Short to power supply in wiring harness between the following terminals:
- Keyless receiver terminal D-BCM terminal 4K-Instrument cluster terminal G
- Open circuit in wiring harness between the following terminals:
- Keyless receiver terminal D-BCM terminal 4K-Instrument cluster terminal G
- Keyless receiver malfunction
- BCM malfunction
- Instrument cluster malfunction
|
