No. 1 Engine Mount Rubber and Front Crossmember Component Installation Note

Verify the left and right identification marks and install the positioning SST to the front crossmember.

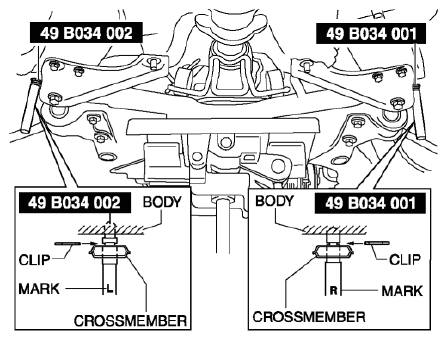

Fig 1: Left And Right Identification Marks
NOTE:
- Verify the identification marks before installation because the left and right parts of the SST have different shapes.
Raise the transmission jack gradually and install the front crossmember to the vehicle. At this point verify that the SST is securely inserted in the positioning holes on the body.

Fig 2: Front Crossmember
WARNING:
- The crossmember component could fall and cause serious injury or death. Verify that the jack securely supports the crossmember component.
Tighten the front crossmember installation bolts and nuts.
Tighten the No.1 engine mount rubber installation bolts in the order shown.

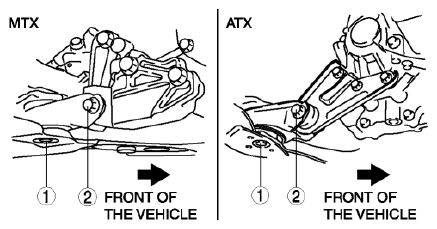

Fig 3: Front Crossmember Bolts And Nuts
CAUTION:
- Tighten the bolts in the order shown in the figure to prevent abnormal noise and vibration after assembly.
  Tightening torque
- 73-90 N.m {7.5-9.1 kgf.m, 54-66 ft.lbf}
