Looseness, Excessive Play Inspection

  1. Inspect the steering wheel for looseness or excessive play in the axial direction of the shaft and four locations around the steering wheel.

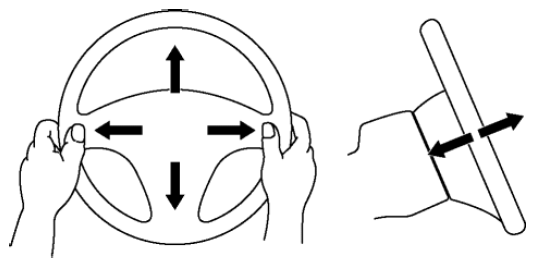

    Fig 1: Inspecting Steering Wheel For Looseness Or Excessive Play
    G08152190
    • If there is any malfunction, inspect the following, and repair or replace the applicable part.
      • Column bearing wear
      • Looseness of the steering wheel installation part
      • Looseness of the column installation area
      • Excessive play of the steering shaft joint
      • Excessive play of the steering gear
