Steering Lock Mounting Bolt, Steering Lock Component Removal Note

  1. Make a groove in the heads of the steering lock mounting bolts using a chisel and hammer.

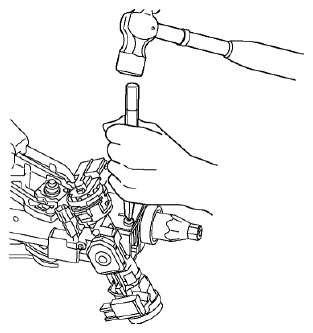

    Fig 1: Making Groove In Heads Of Steering Lock Mounting Bolts Using Chisel And Hammer
    G08152193
  2. Remove the steering lock component.
