Steering Shaft Inspection

  1. Inspect the column bearing for excessive play and damage.
  2. Verify that the measurement of the steering shaft indicated in the figure is as specified.

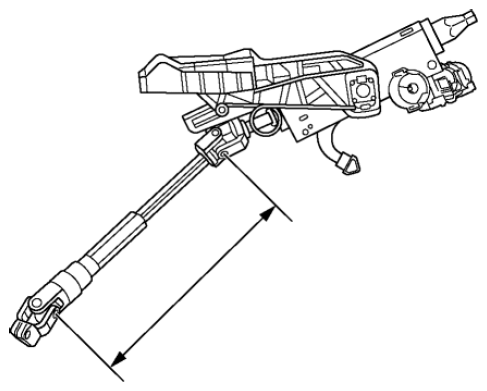

    Fig 1: Inspecting Steering Shaft Length
    G08152198
    • If not within the specification replace the steering shaft component.

      Steering shaft length

    • 335.8-340.8 mm {13.23-13.41 in}
  3. Inspect the tilt/telescope mechanism operation for the following.

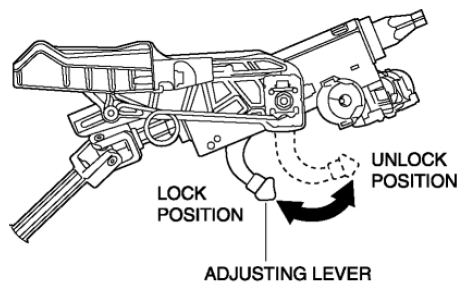

    Fig 2: Inspection Tilt/Telescope Mechanism Operation
    G08152199
    1. Verify that the adjusting lever moves smoothly from the lock to the unlock position.
    2. Verify that the steering shaft is fixed firmly when the adjusting lever is locked.
      • If there is any malfunction, replace the steering shaft.
