Steering Gear and Linkage Removal Note

  1. Remove the steering gear and linkage installation bolts, move the steering gear and linkage in the direction and order of the arrows shown in the figure, and then remove it.

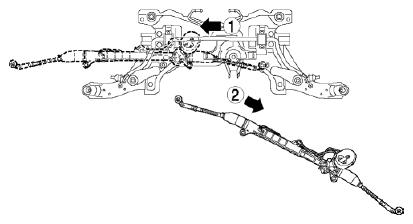

    Fig 1: Steering Gear And Linkage
    G08152201
