Oil Seal Disassembly Note

  1. Install the SST  (49 N032 319A) to the gear housing as shown in the figure.
    Fig 1: Installing SST (49 N032 319A) To Gear Housing
    G08152208
  2. Insert the SSTs  (49 F032 303, 49 B032 323) into the valve housing side.
  3. Remove the oil seal using the SSTs  and a press.

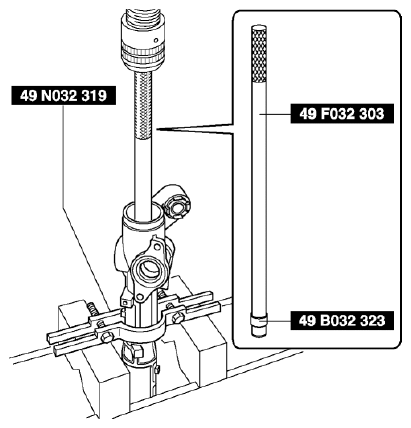

    Fig 2: Removing Oil Seal Using SSTs
    G08152209
