Locknut (on Adjusting Cover), Adjusting Cover Disassembly Note

  1. Remove the locknut using the SST  .

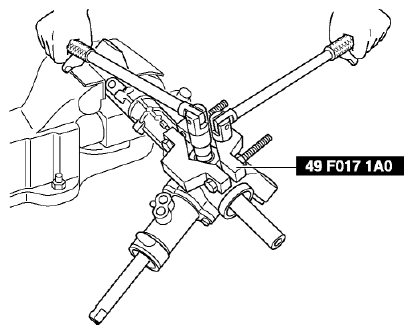

    Fig 1: Removing Locknut Using SST
    G08152207
  2. Remove the adjusting cover.
