Pinion Shaft and Valve Housing Component Assembly Note

  1. Set the rack in the center with the measurement between rack housing end and rack end as shown in the figure.
    Fig 1: Identifying Measurement Between Rack Housing End And Rack End
    G08152226

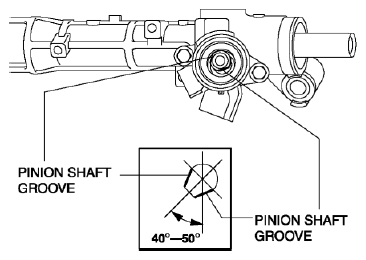

  2. When the pinion shaft position is as shown in the figure with the rack in the center, insert the pinion shaft and valve housing component.
    Fig 2: Identifying Pinion Shaft Installation Position
    G08152227
