Oil Seal Assembly Note

  1. Apply ATF to the lip of a new oil seal.
  2. Install the SST  (49 N032 319A) to the gear housing as shown in the figure.
    Fig 1: Installing SST (49 N032 319A) To Gear Housing
    G08152219
  3. Set the gear housing into the press and insert the oil seal in the gear housing so that groove area is facing up as shown in the figure.

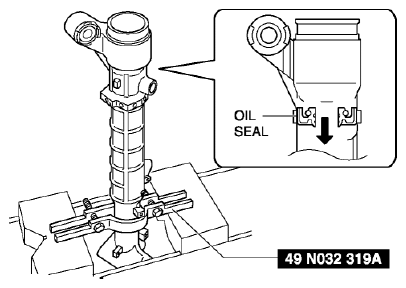

    Fig 2: Inserting Oil Seal In Gear Housing
    G08152220
  4. Set the stopper into the gear housing to hold the SSTs  as shown in the figure.

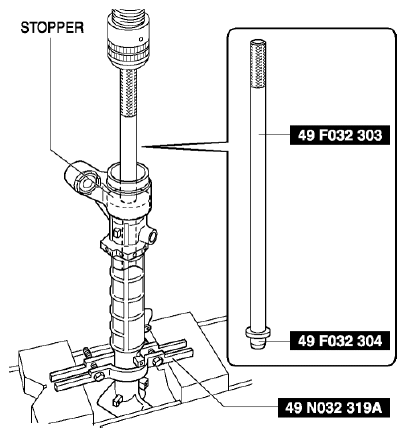

    Fig 3: Setting Stopper Into Gear Housing
    G08152221
  5. Install the oil seal using the SSTs  (49 F032 303, 49 F032 304) and a press.
