Power Steering Oil Pump Disassembly Note
- Remove the power steering oil pump installation bolts (4).
CAUTION:
- If the bolts on the motor side are inadvertently loosened, the tightness of the EHPAS control module and motor cannot be maintained even when re-tightening the bolts. Be careful not to loosen the bolts on the motor side. If the bolts have been inadvertently loosened, replace the electric power steering oil pump component.
NOTE:

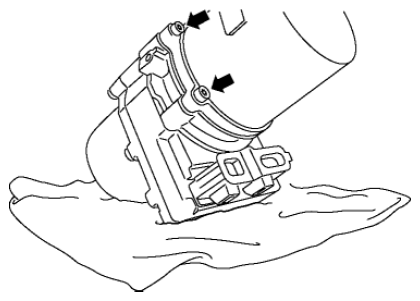

- Remove the control module with it securely set on clean rags or a mat so that the EHPAS control module and motor do not get scratched.
- Remove the power steering oil pump from the EHPAS control module and motor.
CAUTION:
- If the pump and housing become separated when removing the power steering oil pump, the housing could fall and damage the part. When removing, be careful to not allow the pump and housing to become separated.

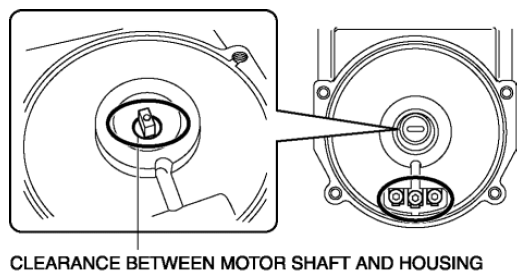

- Be especially careful that fluid does not get on the area shown in the figure as it could result in penetrating the EHPAS control and motor and damage by motor short when removing the power steering oil pump.
