Steering
>>
Electronic Steering
>>
On-Board Diagnostic [Steering System]
>>
Electro Hydraulic Power Assist Steering (EHPAS) System Wiring Diagram
Electro Hydraulic Power Assist Steering (EHPAS) System Wiring Diagram

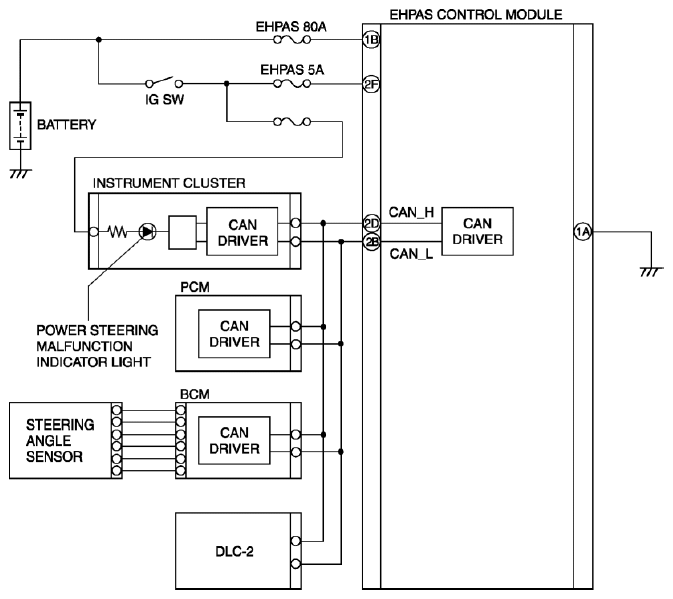

Fig 1: Electro Hydraulic Power Assist Steering (EHPAS) System Wiring Diagram
