DTC B1352: Notes

DTC B1352 Ignition power supply
DETECTION CONDITION
  • Less than 2.5 V  detected at the voltage monitor of the EHPAS CM
FAIL-SAFE FUNCTION
  • Control enabled
  • Power steering malfunction indicator light: Illuminated
POSSIBLE CAUSE
  • Short to ground in wiring harness between EHPAS CM terminal 2F and ignition switch
  • Open circuit in wiring harness between EHPAS CM terminal 2F and ignition switch
  • Poor connection at connectors

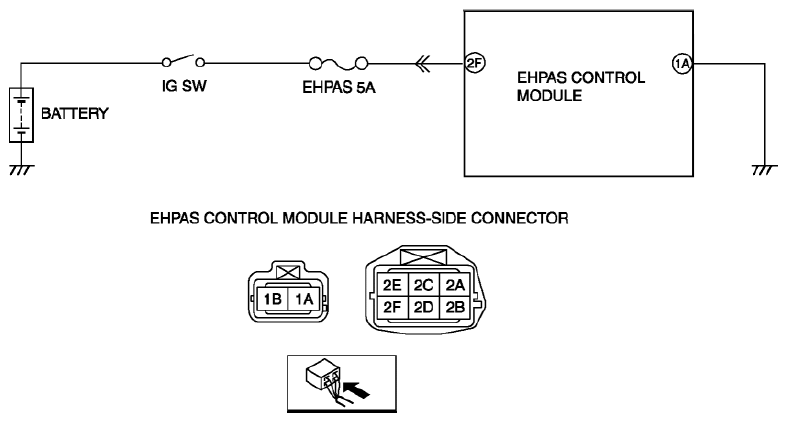

G08150825
