On-Board Diagnostic Wiring Diagram [Two-Step Deployment Control System]
On-Board Diagnostic Wiring Diagram [Two-Step Deployment Control System]

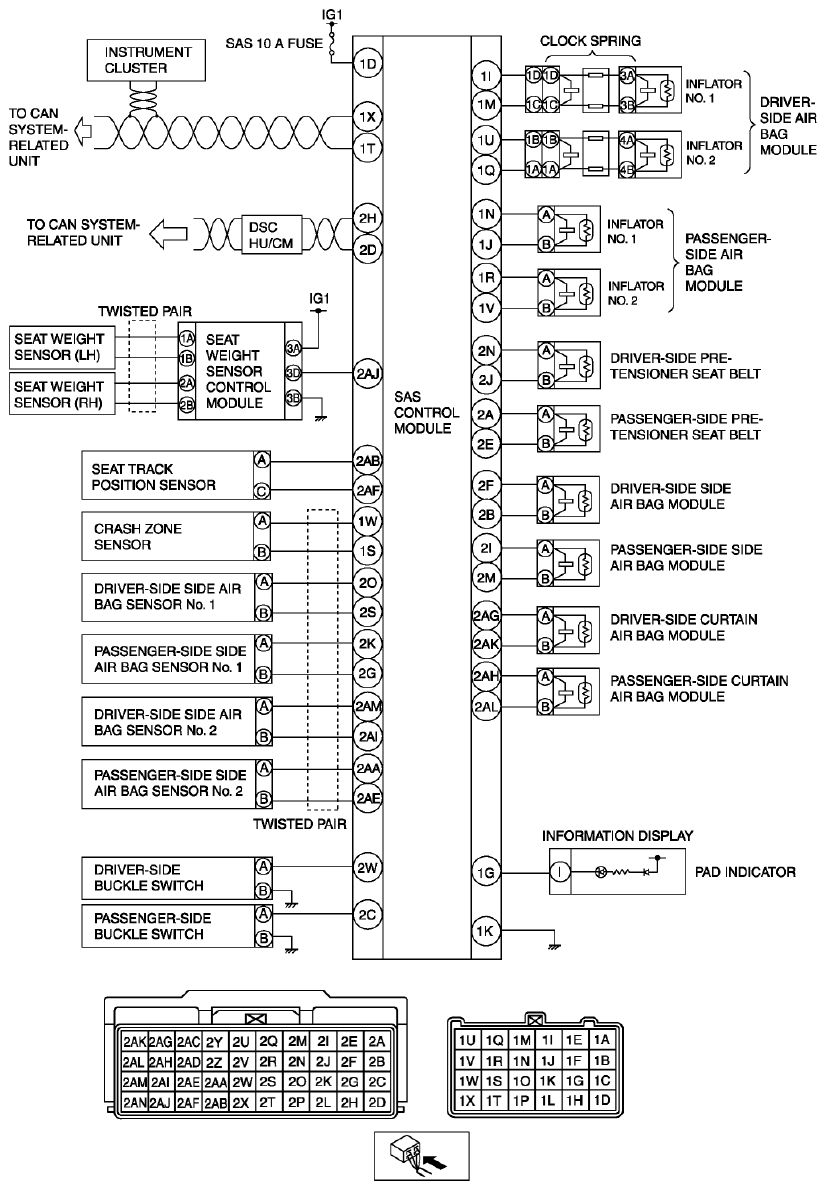

Fig 1: On-Board Diagnostic Wiring Diagram - Two-Step Deployment Control System
