On-Board Diagnostic [Air Bag System - Standard Deployment Control System)
>>
On-Board Diagnostic Wiring Diagram [Standard Deployment Control System]
On-Board Diagnostic Wiring Diagram [Standard Deployment Control System]

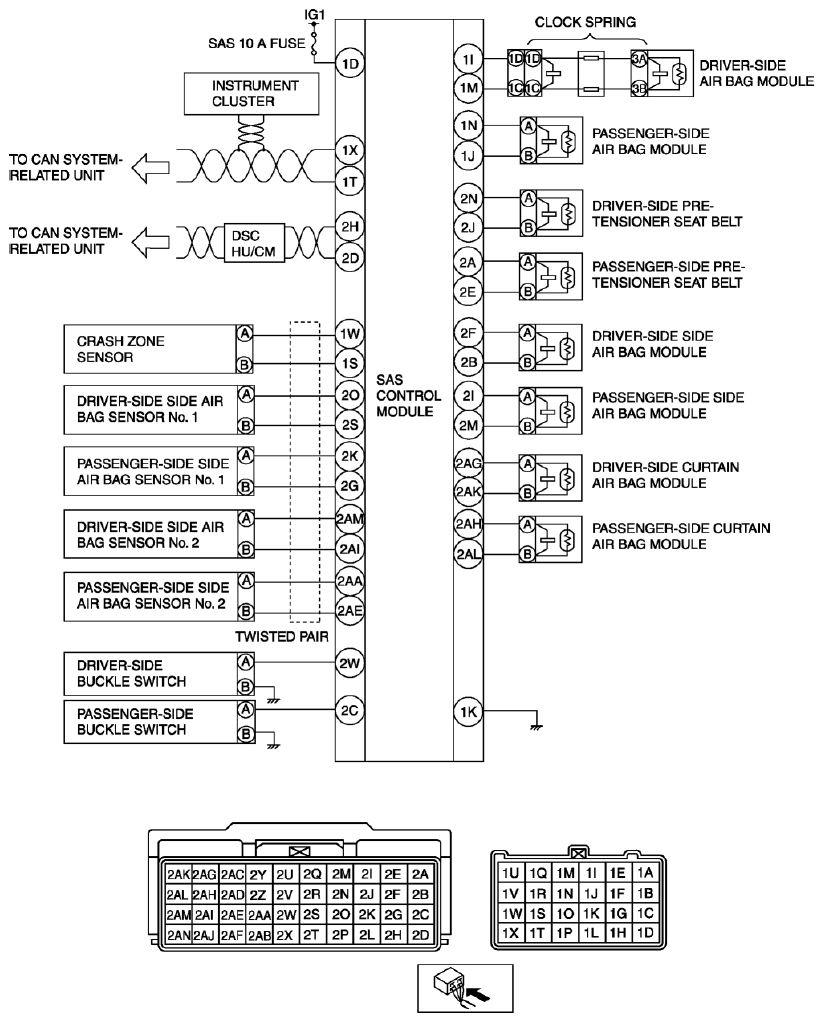

Fig 1: On-Board Diagnostic Wiring Diagram - Standard Deployment Control System
