Inspection Procedure
- Follow the steps below to inspect the SST
(49 H066 002).
- If not as indicated in the table, replace the SST (49 H066 002) because it has a malfunction.
WARNING:
- Do not use a malfunctioning SST (49 H066 002), otherwise it could cause the air bag module or pre-tensioner front buckle to accidentally operate (deploy).
CAUTION:
- Because the permissible voltage for the SST (49 H066 002) is 12 V, do not connect a 24 V power source because it will damage the SST. Always connect only a 12 V power source.

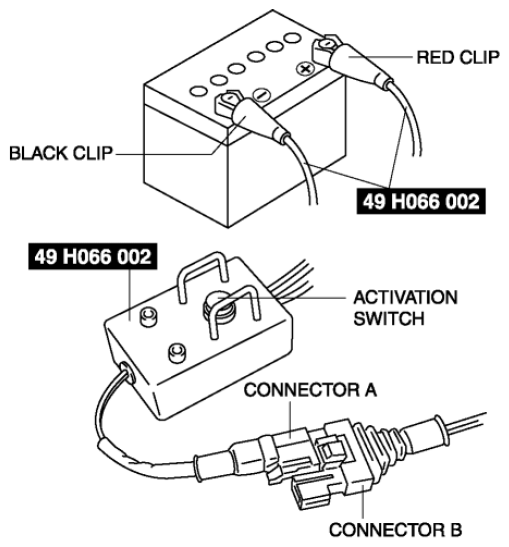

Fig 1: Connecting Power Supply Red Clip To Positive Battery Terminal And Black Clip To Negative Battery Terminal
| Step | Inspection procedure | Light condition | |
|---|---|---|---|
| Green | Red | ||
| 1 | Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal. | On | Off |
| 2 | Connect connectors A and B. | Off | On |
| 3 | Press the activation switch. | On | Off |
