Curtain Air Bag Module Installation Note

  1. Affix the double-sided adhesive tape for the curtain air bag module to the position shown in the figure.

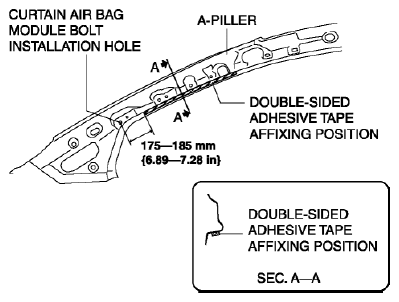

    Fig 1: Identifying Double-Sided Adhesive Tape Installation Position For Curtain Air Bag Module
    G08152431
