Clock Spring Removal/Installation: Notes

CAUTION:
  • If the disc on the combination switch is deformed or has foreign material adhering to it, performance of the steering angle sensor may be reduced, causing abnormal operation. When handling the clock spring, be careful not to deform the disc and make sure there is no foreign material on it.
  1. Switch the ignition to off.
  2. Disconnect the negative battery cable and wait for 1 min or more  .
  3. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)(See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  4. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  5. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  6. Remove the clock spring connector.

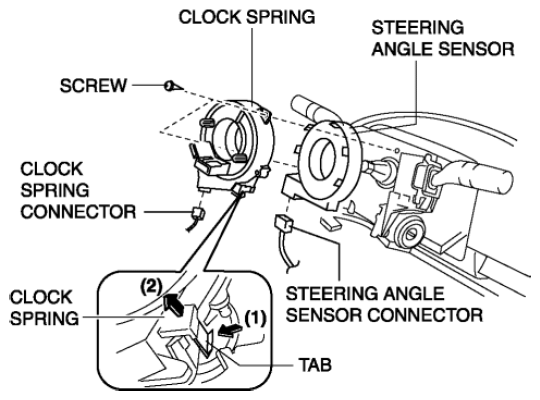

    Fig 1: Removing Clock Spring And Tab
    G08152441
  7. Remove the tab direction of the arrow shown in the figure.
  8. Remove the screws.
  9. Remove the clock spring.
  10. Remove the steering angle sensor connector.
  11. Remove the steering angle sensor. (See STEERING ANGLE SENSOR REMOVAL NOTE .)
  12. Install in the reverse order of removal. (See CLOCK SPRING INSTALLATION NOTE .)
  13. Verify that the air bag system warning light illuminates for approx. 6 s  and goes out.
    • If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic.
