Clock Spring Adjustment

NOTE:

The adjustment procedure is also specified on the caution label of the clock spring.

Set the front wheels straight ahead.
CAUTION:
- The clock spring will break if over-wound. Do not forcibly turn the clock spring.

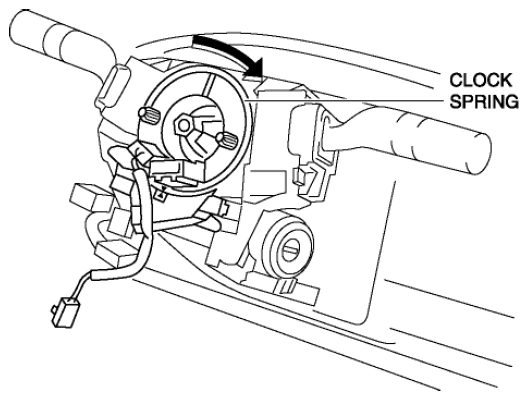

Turn the clock spring clockwise until it stops.

Fig 1: Turning Clock Spring Clockwise

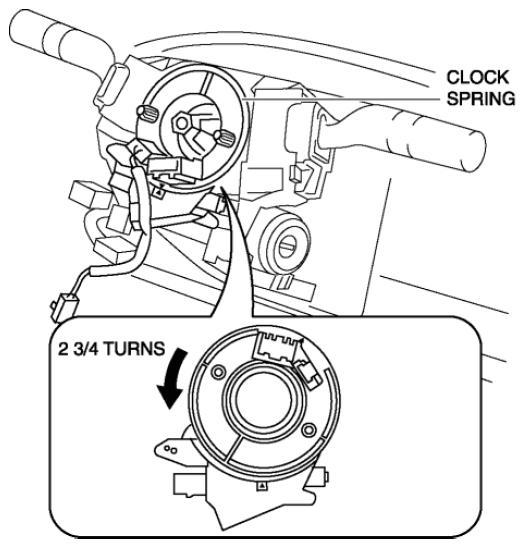

Turn the clock spring counterclockwise 2 3/4 turns .

Fig 2: Turning Clock Spring Counterclockwise

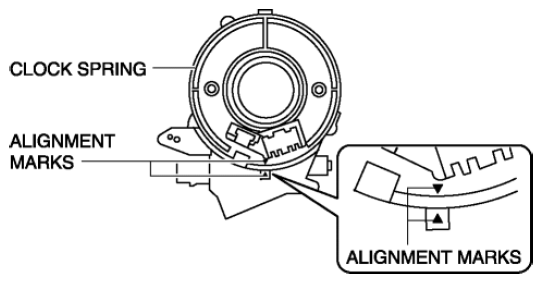

Align the mark on the clock spring with the mark on the outer housing.

Fig 3: Identifying Alignment Marks On Clock Spring
