Driver-side Air Bag Module

  1. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
  2. Install the bolts to the driver-side air bag module as shown in the figure, and connect the SST (Adapter harness)  .

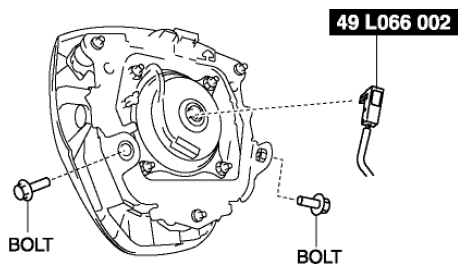

    Fig 1: Connecting SST (Adapter Harness) To Driver-Side Air Bag Module
    G08152512
  3. Place the driver-side air bag module on the center of the tire wheel with the padded surface facing up. To secure the air bag module to the tire wheel, wrap a wire (cross section 1.25 mm 2  {0.002 in 2  } or more  ) through the wheel and the bolt installation holes of the air bag module at least 4 times  .

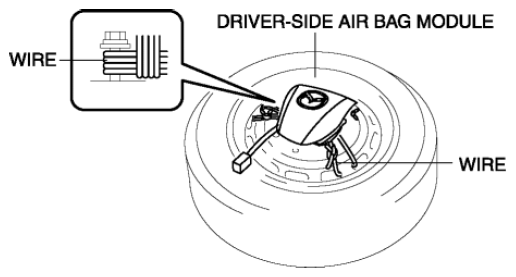

    Fig 2: Placing Driver-Side Air Bag Module On Center Of Tire Wheel With Padded Surface Facing Up
    G08152513
    WARNING:
    • If the air bag module is not properly installed to the tire wheel, serious injury may occur when the module is operated (deployed). When installing the air bag module to the tire wheel, make sure the padded surface is facing up.
  4. Stack three tires without wheels on top of the tire with the driver-side air bag module, and then stack another tire with a wheel on the very top.

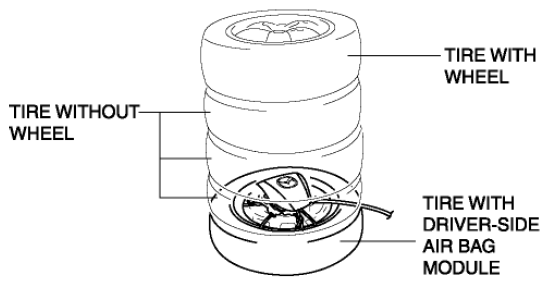

    Fig 3: Identifying Tire With Driver-Side Air Bag Module, Tire With And Without Wheel
    G08152514
  5. Secure the tires with wire.
    Fig 4: Securing Tires With Wire
    G08152515
  6. Connect the SST (Deployment tool)  to the SST (Adapter harness)  .
    Fig 5: Connecting SST (Deployment Tool) To SST (Adapter Harness)
    G08152516
  7. Connect the SST (Deployment tool)  to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  8. Verify that the red lamp on the SST (Deployment tool)  is illuminated.
  9. Verify that all persons are standing at least 6 m {20 ft}  away from the vehicle.
  10. Press the activation switch on the SST (Deployment tool)  to operate (deploy) the air bag module.
    Fig 6: Identifying Activation Switch On SST (Deployment Tool)
    G08152517
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  11. Disconnect the SST (Deployment tool)  from the SST (Adapter harness)  .
