Refrigerant System General Procedures

  1. Fully close the valves of the manifold gauge.
  2. Connect the charging hoses to the high- and low- pressure side joints of the manifold gauge.

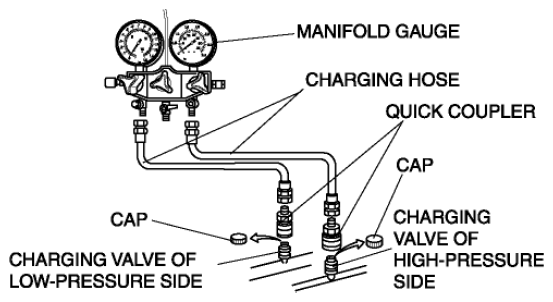

    Fig 1: Connecting HVAC Manifold Gauge
    G08150862
  3. Connect the quick couplers to the ends of the charging hoses.
  4. Connect the quick couplers to the charging valves.
