| DESCRIPTION |
- U3003:16
- Climate control unit power supply circuit voltage below threshold (9.9 V or less)
- U3003:17
- Climate control unit power supply circuit voltage above threshold (16.3 V or more)
|
| DETECTION CONDITION |
- Climate control unit power supply voltage is other than 10-16.2 V
|
| FAIL-SAFE FUNCTION |
- |
| POSSIBLE CAUSE |
- Generator system malfunction
- ROOM 15 A fuse malfunction
- Battery malfunction
- Climate control unit connector malfunction
- Open or short circuit to ground in wiring harness between battery positive terminal and climate control unit
- Climate control unit malfunction
|

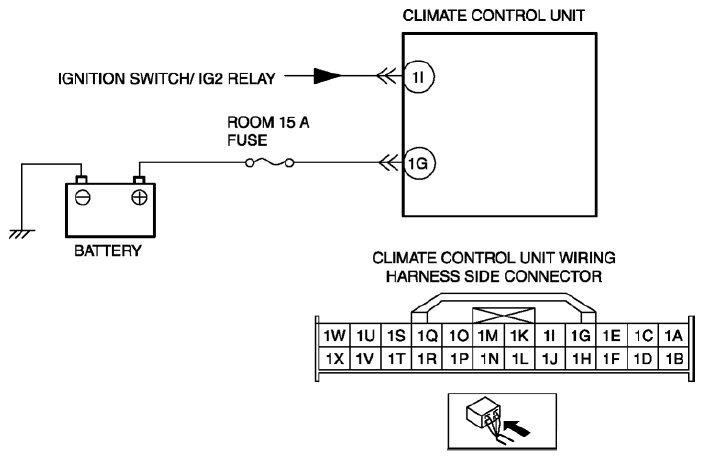

| SYSTEM WIRING DIAGRAM |
|
