| DESCRIPTION |
- P0530:12
- Refrigerant pressure sensor circuit short to power supply
- P0530:13
- Refrigerant pressure sensor circuit open
|
| DETECTION CONDITION |
- Malfunction in wiring harness between refrigerant pressure sensor and climate control unit
|
| FAIL-SAFE FUNCTION |
- Refrigerant pressure sensor input value is fixed at 1.5 MPa {15 kgf/cm 2
, 218 psi}
.
|
| POSSIBLE CAUSE |
- Refrigerant pressure sensor connector malfunction
- Refrigerant pressure sensor malfunction
- Open circuit in wiring harness between climate control unit and refrigerant pressure sensor
- Short to power supply in wiring harness between climate control unit and refrigerant pressure sensor
- Climate control unit connector malfunction
- Climate control unit malfunction
|

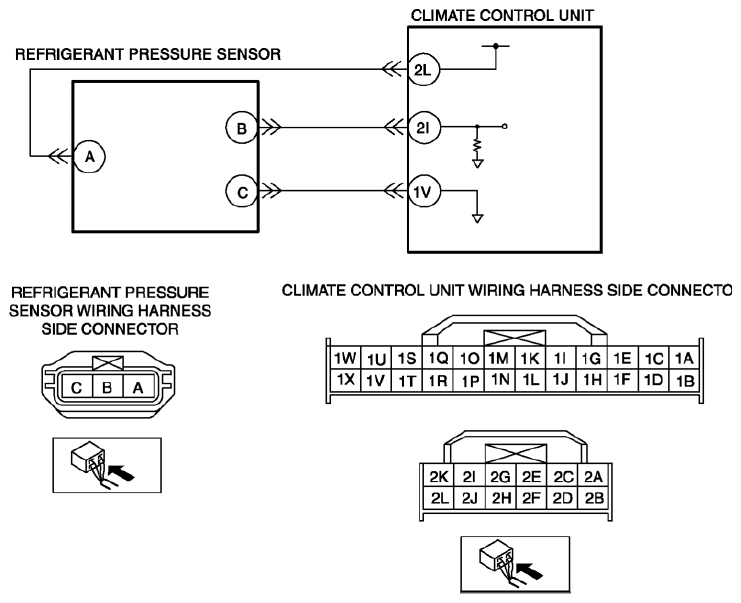

| SYSTEM WIRING DIAGRAM |
|
