DTC B1A61:11, B1A61:13 [Full-Auto Air Conditioner]: Notes

DESCRIPTION	B1A61:11 Passenger compartment temperature sensor circuit short to ground B1A61:13 Passenger compartment temperature sensor circuit open
DETECTION CONDITION	Malfunction in wiring harness between passenger compartment temperature sensor and climate control unit
FAIL-SAFE FUNCTION	Malfunction determined when IG SW at ON Passenger compartment temperature sensor input value is fixed at the value right before the malfunction. Malfunction already exists when IG SW turned to ON Passenger compartment temperature sensor input value is fixed at 25 °C {77 °F}.
POSSIBLE CAUSE	Passenger compartment temperature sensor connector malfunction Passenger compartment temperature sensor malfunction Open or short circuit in wiring harness between climate control unit and passenger compartment temperature sensor Short to ground in wiring harness between climate control unit and passenger compartment temperature sensor Climate control unit connector malfunction Climate control unit malfunction

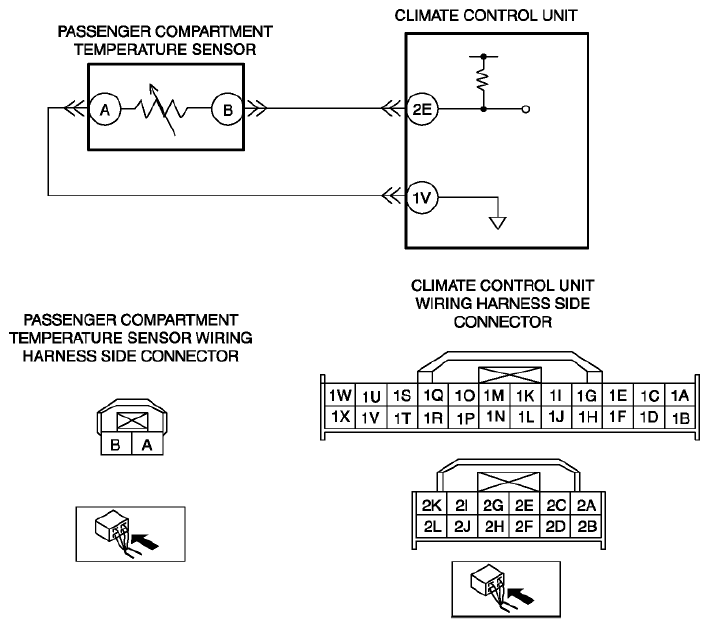

SYSTEM WIRING DIAGRAM
