DTC B10BE:12, B10BE:13 [Full-Auto Air Conditioner]: Notes

DESCRIPTION	B10BE:12 Solar radiation sensor circuit short to power supply B10BE:13 Solar radiation sensor circuit open
DETECTION CONDITION	Malfunction in wiring harness between solar radiation sensor and climate control unit
FAIL-SAFE FUNCTION	Malfunction determined when IG SW at ON The solar radiation sensor input value is fixed at the value directly before the malfunction only when the valve is 1,450 W/m ² or more . Malfunction already exists when IG SW turned to ON Solar radiation sensor value is fixed at 0 W/m ² .
POSSIBLE CAUSE	Solar radiation sensor connector malfunction Solar radiation sensor malfunction Open circuit in wiring harness between climate control unit and solar radiation sensor Short to power supply in wiring harness between climate control unit and solar radiation sensor Climate control unit connector malfunction Climate control unit malfunction

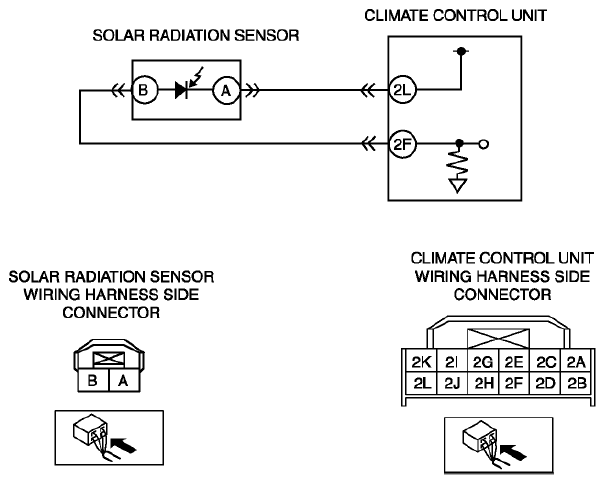

SYSTEM WIRING DIAGRAM
