DTC B1086:71 [Full-Auto Air Conditioner]: Notes

NOTE:

DTC B1086:71 is detected when the ignition is switched ON and approx. 30 s have passed since the airflow mode actuator is operated.

DTC B1086:71	Airflow mode actuator motor lock
DETECTION CONDITION	Airflow mode actuator motor lock
FAIL-SAFE FUNCTION	Malfunction determined when IG SW at ON Airflow mode actuator drive signal is stopped right when the malfunction is determined. Malfunction already exists when IG SW turned to ON Control based on ambient temperature.
POSSIBLE CAUSE	Airflow mode actuator connector malfunction Airflow mode actuator malfunction A/C unit (airflow mode link and airflow mode crank) malfunction Open circuit in wiring harness between climate control unit and airflow mode actuator Short to ground in wiring harness between climate control unit and airflow mode actuator Climate control unit connector malfunction Climate control unit malfunction

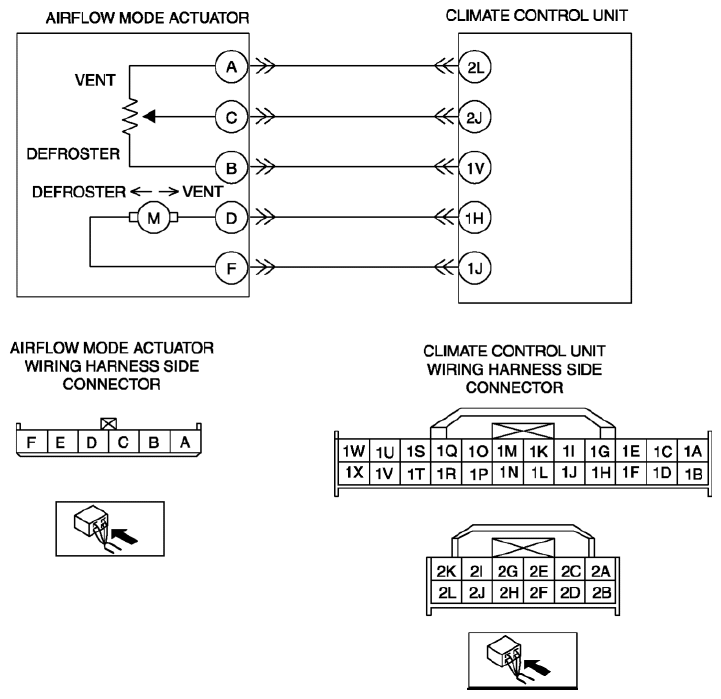

SYSTEM WIRING DIAGRAM
