Solar Radiation Sensor Inspection [Full-Auto Air Conditioner]

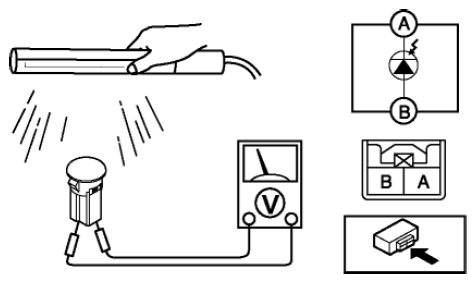

- Shine a fluorescent light or expose the solar radiation sensor to natural sunlight.
- Connect the positive (+) lead to terminal A and negative (-) lead to terminal B of the solar radiation, and verify that the voltage value is output.
- If the voltage is 0 V , replace the solar radiation sensor.
