Rear Vent Actuator Removal/Installation [Full-Auto Air Conditioner]
>>
Screw Removal Note
Screw Removal Note

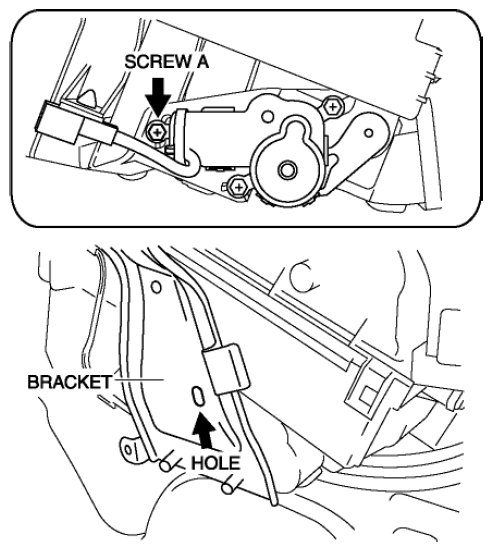

Remove screw A while verifying the screw A installation position through the bracket hole.
Fig 1: Bracket, Screw A And Hole
