Rear Power Metal Oxide Semiconductor Field Effect Transistor (Power Mos FET) Removal/Installation [Full-Auto Air Conditioner]

  1. Disconnect the battery cable.
  2. Remove the following parts:
    1. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    2. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    3. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
  3. Remove the order indicated in the table.

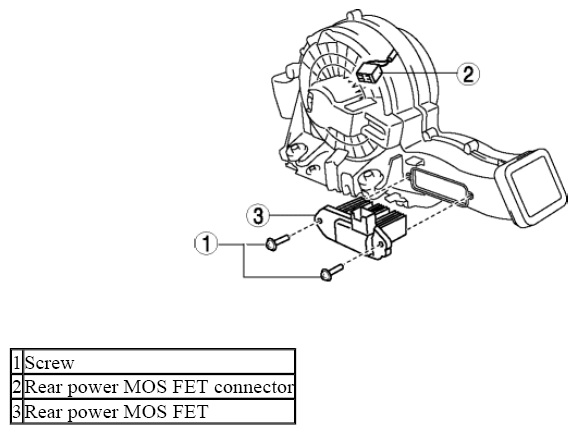

    Fig 1: Rear Power MOS FET With Connector And Screw
    G08150972
  4. Install in the reverse order of removal.
