Magnetic Clutch Inspection [Full-Auto Air Conditioner]

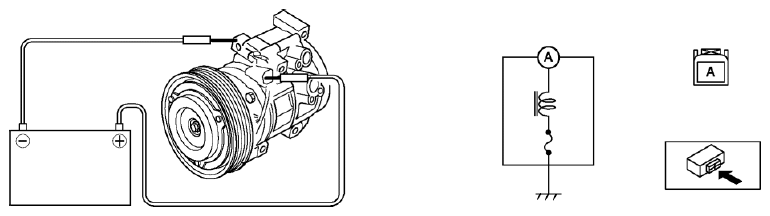

- Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.
- Verify that the magnetic clutch operates.
- If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER] .)
