Shim Installation Note
Shim Installation Note
First, insert the 1mm (0.039 in) thick shim into the shaft.

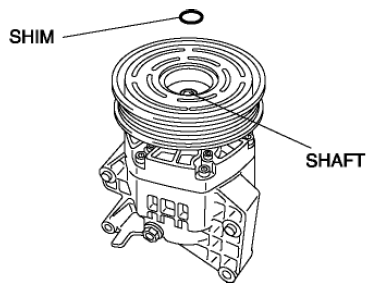

Fig 1: Shim And Shaft
