A/C Compressor Pulley Installation Note

  1. Install the inner wheel of the pulley using SST  (49 D034 202) to the compressor.

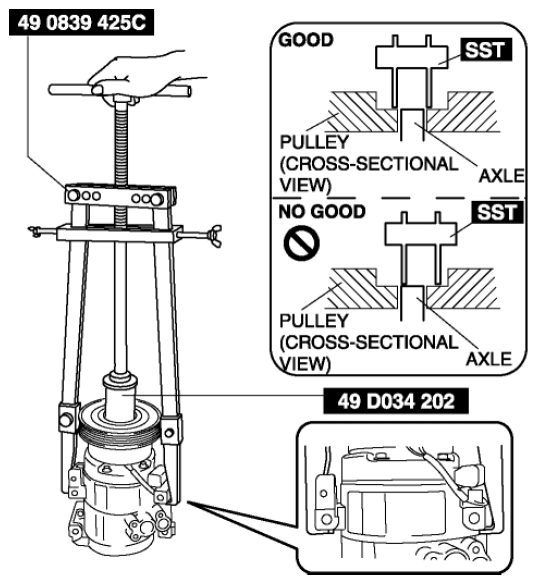

    Fig 1: Installing Inner Wheel Of Pulley Using SST (49 D034 202) To Compressor
    G08150979
CAUTION:
  • If the SST is not properly positioned when the A/C compressor pulley is press-fit, the A/C compressor axle will interfere with the SST, possibly damaging component parts. Verify the SST and axle are properly positioned and perform the procedure very carefully.
