Front blower Case Installation Note

  1. If not replacing the front blower case, replace the adhesive polyurethane on the fresh-air inlet of the front blower case.

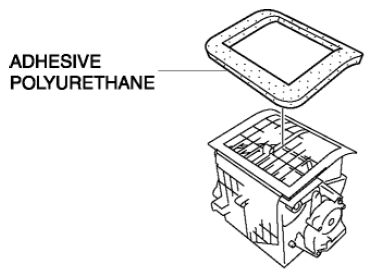

    Fig 1: Identifying Adhesive Polyurethane On Fresh-Air Inlet Of Front Blower Case
    G08150966
    CAUTION:
    • To adhere new polyurethane properly, be sure to remove the adhesive agent and adhesive polyurethane completely.
    NOTE:
    • If the front blower case is removed or installed, the adhesive polyurethane can be damaged. Damaged adhesive polyurethane could cause abnormal noise or other malfunctions, therefore replace it.
