Rear Blower Unit Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    2. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
    3. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
    4. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
    5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [G66M-R] .)
    6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    8. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  3. Disconnect the rear power MOS FET connector and rear blower motor connector.

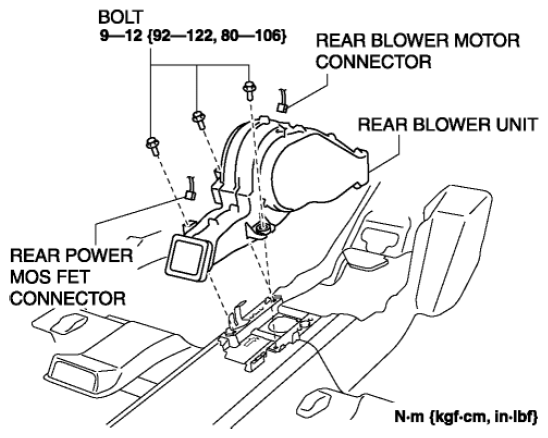

    Fig 1: Rear Power MOS FET Connector, Rear Blower Motor Connector, Rear Blower Unit And Bolts With Torque Specification
    G08150908
  4. Remove the bolts.
  5. Remove the rear blower unit.
  6. Install in the reverse order of removal.
