Rear Blower Unit Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

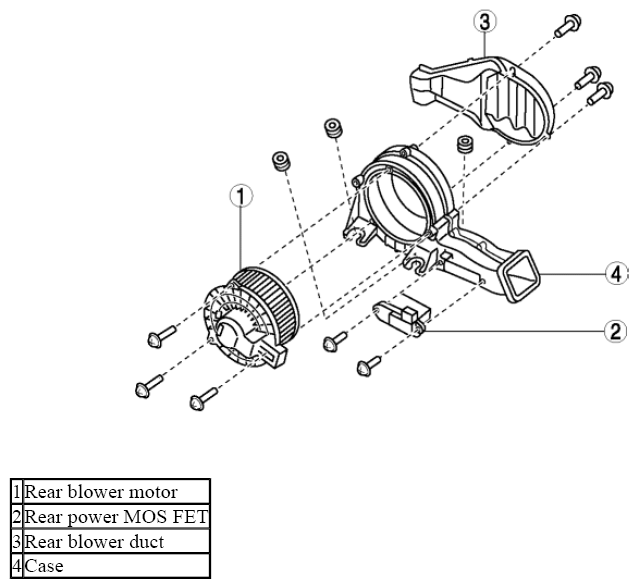

    Fig 1: Identifying Rear Blower Motor, Rear Power MOS FET, Rear Blower Duct And Case
    G08150909
  2. Assemble in the reverse order of disassemble.
